220V Electric Wire Rope Pulling Hoist 1 Ton For Warehouses

Henan Dowell Crane Co., Ltd.
Contact Now

220V Electric Wire Rope Pulling Hoist 1 Ton For Warehouses

  • 1
  • 2

Brand Name : Dowellcrane

Model Number : CD MD

Certification : CE ISO

Place of Origin : China (Mainland)

MOQ : 1 Set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200 Set/Sets per Month

Delivery Time : 15 work days

Packaging Details : electric hoist, motor packed by water-proof film, spare parts packed by high quality plywood box

Working duty : M3/M5

Working temperature : -20 ~ 40 ℃

Lifting Height(M) : 6-30m

Lifting Speed : 0.8/8M/Min

Motor protection class : IP54 IP55 IP65

Condition : New

Color : According to your requirement

Voltage : 380V,220v/50Hz,220V-440V

Application : Lifting Goods,warehouses,Construction used all kinds of cranes

Capacity : 0.5T~30T

Usage : Construction Hoist,Mining Hoist,Material Handling,portable,Household

After-sales service provided : Engineers available to service machinery overseas,Field maintenance and repair service,Free spare parts

Contact Now

electric wire rope pulling hoist 1 ton

Product description

CD1 MD1 type electric hoist 0.5 ton 20 ton capacity with certification is the most popular hoist for single girder overhead cane, because of their characteristics of tight structure, smart body, safety and reliability, common-used parts, well changeable property, strong lifting capacity as well as convenient maintenance. The CD1 MD1 type electric hoist 0.5 ton 20 ton capacity with certification can also work by fixing to a section of I-beam. It is a light duty designed.

Main Features

  • Particularly favorable hook paths.
  • Anti derailment and lift-off protection design.
  • Excellent approach dimensions thanks to compact design.
  • The main parts of it adopt high quality material to ensure durability.
  • Special specifications and marks can be made according to customers' requirements.
  • High quality and excellent performance.
  • Wide adaptation and 3 years warranty.

More specification as follows

the general details of electric lifting hoist
Model CD MD
Capacity (ton) 0.5, 1, 2, 3, 5 10, 16, 20 0.5, 1, 2, 3, 5 10, 16, 20

Travelling

mechanism

Travelling

Speed (m/min)

10, 20, 30 10, 20, 30
Motor (kw) 1x0.4, 1x0.8 2x0.8, 4x0.8 1x0.4, 1x0.8 2x0.8, 4x0.8

Lifting

mechanism

Lifting

Speed (m/min)

8 7, 3.5 8/0.8

7/0.7,

3.5/0.35

Lifting

height (m)

6, 9, 12, 18, 24, 30 9, 12, 18, 24, 30 6, 9, 12, 18, 24, 30 9, 12, 18, 24, 30
Motor (kw) 0.8, 1.5, 3.0, 4.5, 7.5 13 0.8/0.2, 1.5/0.2, 3.0/0.4, 4.5/0.4, 7.5/0.8 13/1.5
Duty Class M3
Power source 380V, 50HZ, 3 phase (or other standard)
Working temperature -20~40°C
Branch of rope 2 ropes(0.5t~5t), 4 ropes(10t~20t)
Brake Mounted on motors
Control model

Pendant pushbutton control

or wireless remote control

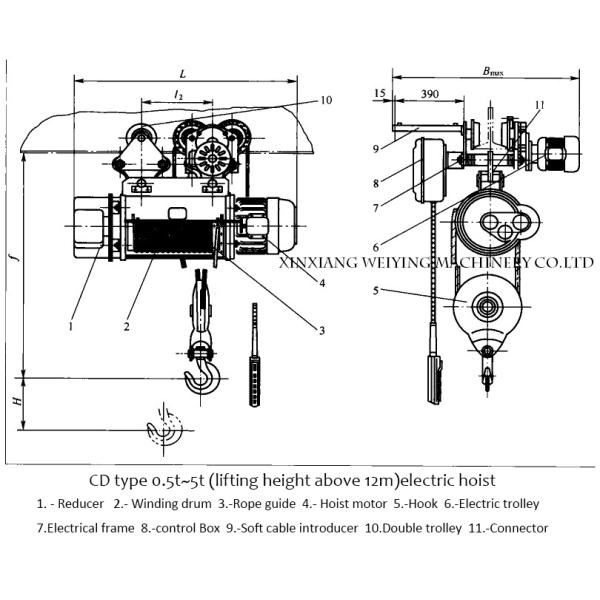

Detailed Images

220V Electric Wire Rope Pulling Hoist 1 Ton For Warehouses

​Product Process

220V Electric Wire Rope Pulling Hoist 1 Ton For Warehouses

Packaging&shipping

220V Electric Wire Rope Pulling Hoist 1 Ton For Warehouses

1. Hoist and electric parts will be packed by plywood crate, for avoiding the demage from goods crash and impact during the delivery.
2. Girders and other main parts will be packed by plastic woven cloth, for preventing rust from soppy condition during the transportation.
3. Only the best transport solution will be taken for saving your cost uttermost on finance, security and time.

About Us

Henan Dowell Crane Co., Ltd is a China-leading group of crane businesses which was founded in 1955, And serving a broad range of customers all over the world to provide a complete set of advanced lifting project, including Gantry crane, Bridge crane, Jib crane, Accessory.

  • Henan Dowell Crane Co., Ltd has already obtained the CCC,CE,BV,SGS,ISO OHSAS certifications and has won over 60 honors
  • Our company offers services for more than 5000 companies, and the products are polular in more than 100countries.
